F26 Hexagon Punch with 1/4" x 1/8" Cross Keyway in Ravenna, OH, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Head diameter
- 1.687"
- Body diameter
- 1.531"
- Overall length
- 2.687"
- Category
- Punch Presses in USA
- Subcategory
- Tooling
- Subcategory 2
- Tooling
- Listing ID
- 89027725
Description
Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Hexagon Dies.

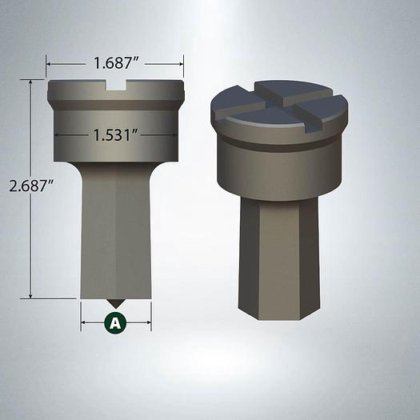

Dimensions:
Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed the smallest punch size.
Cross Reference:
F26 Punch
AP-128, CST-228, GFM-45, PIR-EF
Proudly Made in the USA
11/32"
3/8"
13/32"
7/16"
15/32"
1/2"
17/32"
9/16"
19/32"
5/8"
21/32
11/16"
23/32"
3/4"
25/32"
13/16"
27/32"
7/8"
29/32"
15/16"
31/32"
1"
1-1/32"
1-1/16"
1-3/32"
1-1/8"
1-5/32"
1-3/16"
1-7/32"
1-1/4"
$73 USD
