Cable Tray Roll Forming Machine Metal Stud Roll Forming Machine in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- The motor power
- 15kw
- Forming quantity
- 28
- Material feeding thickness
- 1.5- 3.0/mm
- Forming speed
- 6-8m/Min
- Forming model
- 100*40-600*150
- Forming wheel mould
- Material Is Gcr15
- Roller diameter
- 165mm
- Weight
- 18t
- Control system
- PLC
- Transport package
- Steel Wire
- Specification
- EN-110CT
- Hs code
- 845522909
- Production capacity
- 1000sets/Year
- Category
- Bending & Forming in China
- Subcategory
- Roll forming machine
- Subcategory 2
- Metal processing machinery
- Subcategory 3
- Metallic processing machinery
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 90002793
Description
Cable Tray Roll Forming Machine Metal Stud Roll Forming Machine

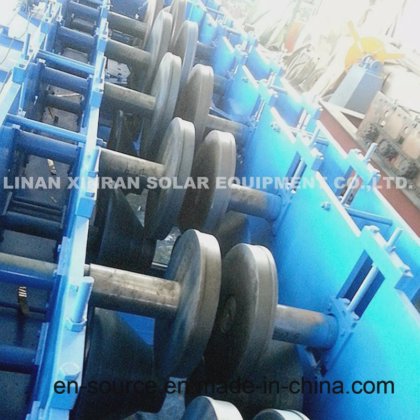

1 .The cable tray roll forming machine photo for reference:
2.Technical specification:
2.1Specification:
Material feeding thickness/mm
Forming specificaiton /mm
Forming quantity
The motor power
The main function
1.5- 3.0
100*40-600*150
28
15KW
Making cable tray
2.2Working process:
Feeding → Hydraulic punching → Guiding → Roll forming → Hydraulic cutting → Carrier out of product
2.3Configuration:
Manually inflatable rack
1 set of hydraulic punching , press, cutting device
1 )set of main forming machine
1 set of support frame
Forming with 28 working process, using chain wheel transmission
Size: 20000×1700×950mm
3) Forming speed: 6-8m/min; Forming model: 100*40-600*150
Forming wheel mould material is GCr15; Heat treatment hardness is HRC52~55
5) Shaft size is¢85; material is 45#
Rolling reinforcement with a removable reinforced roller; The max width is 550mm;
