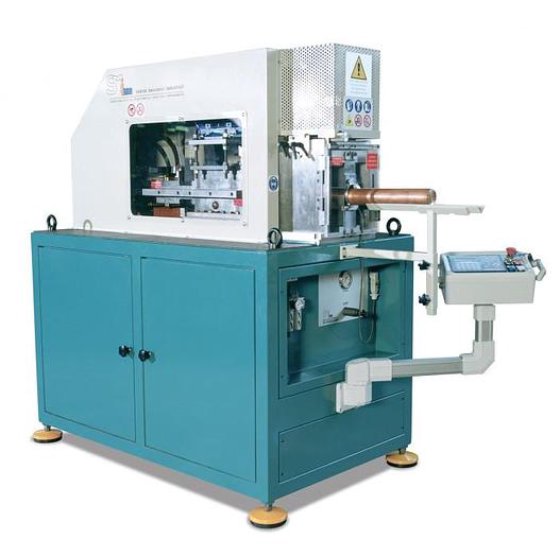

SMI BPR 80X2 Tube End Closer in Montreal, Quebec, Canada
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Copper tube crowning capacity max
- Ø 80 w.t. 2
- Copper tube crowning capacity min
- Ø 8 w.t. 0,5
- Tube minimum length (with no special equipment)
- 100 mm.
- Tube maximum length
- unlimited
- Electric feeding
- 380 V 50 Hz
- Installed total power
- 19 kW
- Pneumatical feeding
- 6 Bar
- Subcategory
- Smi
- Subcategory 2
- Tube processing
- Subcategory 3
- End-forming & end-closing machines
- Listing ID
- 90053251
Description
BPR 80X2

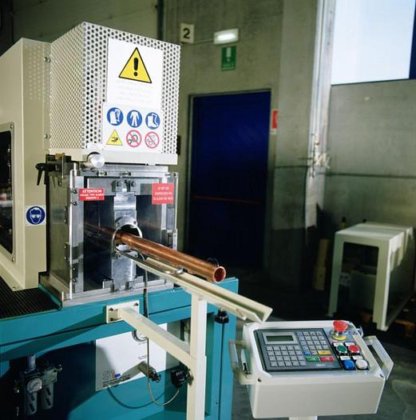

The BPR range of machines allows you to close the copper tubes by the outside deformation of the ends. The “plane end sealing” exclusive system, applied with a stopped tube, allows a safe working of endless length tubes. The very short tool change time justifies the use of the machine also in case of 5 pcs. production lots.
Performances:
Technical characteristics:
Dimensions:
Machine dimensions:
Length mm.1500
Width mm.800
Height mm.1800
Weight kg.910
Application fields:
Industrial air conditioning
Heating
Heat recovery
Accessories:
Tube-holding slides for small dimensions.
Automatic loader.
Closing clamps with hole-saver pins.
Kit for convex closures.
Milled half-shell for tubes with “t-drill” holes.
Special supports for drilled tubes less than 45 mm length.
Supports with rolls for heavy and 2 mt. + length tubes.
