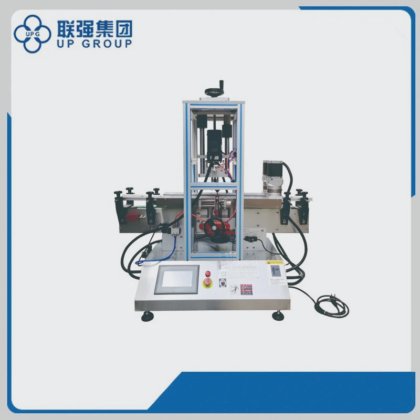

LQ-XG Automatic Bottle Cap Sorting & Cap Feeding & Capping Function Machine in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Free installation and training
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Packaging
- Bottles
- Automatic grade
- Automatic
- Packaging material
- Plastic
- Application
- Cosmetics, Cleaning, Detergent, Drinks, Oil, Hair Care Products
- Power supply
- 220V, 50Hz, 850W, 1Ph
- Speed
- 20 - 40 pcs/min
- Bottle diameter
- 25 - 120 mm
- Bottle height
- 100 - 300 mm
- Cap diameter
- 25 - 100 mm
- Machine weight
- 150 KG
- Transport package
- Wood
- Specification
- 1200mm * 800mm * 1200mm
- Hs code
- 8422303090
- Production capacity
- 100sets/Year
- Category
- Packaging Machinery in China
- Subcategory
- Sealing machine
- Subcategory 2
- Packing machinery
- Subcategory 3
- Packaging & printing
- Listing ID
- 90855612
Description
Product Description
Introduction:
This machine includes automatically cap sorting, cap feeding, and capping function. The bottles are entering in line, and then continuous capping, high efficiency. It's widely used in industries of cosmetic, food, beverage, medicine, biotechnology, health care, personal care chemical and etc. it's suitable for all kinds of bottles with screw caps.
On the other hand, it can connect with auto filling machine by conveyor. and also can connect with electromagetic sealing machine according to the customers' requirements.
Operation process:
Put the bottle
on the conveyor by manual (or automatic feeding of the product by other device) - bottle delivery - put the cap on the bottle by manual or by caps feeding device - capping (automatic realized by the equipment)
Feature:
1.The automatic capping machine is controlled by PLC, and the Chinese and English interface touch screen makes the operation display clear and easy to understand.
2.
