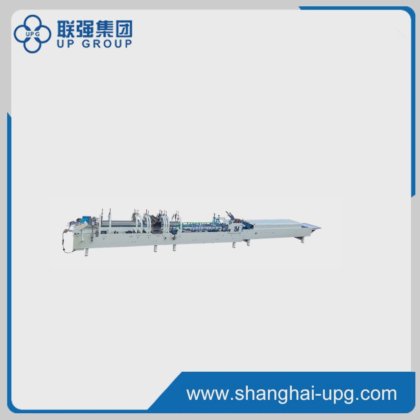

Automatic Multi-Functional Crash Lock Bottom Folder Gluer (Advanced Configuration) in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 YEAR
- Automatic grade
- Automatic Folder Gluer
- Driven type
- Electric
- Packaging
- Wooden case
- Line speed
- 0~220m/min adjustable
- Paper board
- 210~600g/m2 paperboard
- Paper board feeding
- Continuous automatic
- Glue type
- Cold glue
- Transport package
- Wooden Case
- Specification
- 800
- Hs code
- 8441309000
- Production capacity
- 50
- Category
- Folders in China
- Subcategory
- Folder gluer
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Machinery for packaging supplies
- Listing ID
- 90871782
Description
Product Description
LQ-ZH-800D have the same structure with ZH800G. Based on G-series, D-series has the following improvements:
1. LQ-ZH-D series adds the upper belt on the folding unit to improve the stability in box movement.
2. Adds the pre-press section before the press section to improve the stability and smoothness in box movement
3. Pressing unit has separate motor to control speed. It has auto trombone control function (only when the box coming, the pressing unit works).
Product Parameters
Model
LQ-ZH-800D
Line Speed
0~220m/min adjustable
Paper board
210~600g/m2 paperboard
Box forming
Either side folds, either sides pre-fold, and crash lock bottom
Paper board feeding
Continuous automatic
Way of folding
1st, 2nd and 4th line can do fold 180&°,3rd
Line 135°
Glue type
Cold glue
Power
3.7Kw, AC220V, Single phase
Weight
2000Kg
Dimension
8500*900*1300mm
The counting range
0~999999 (full automatic)
