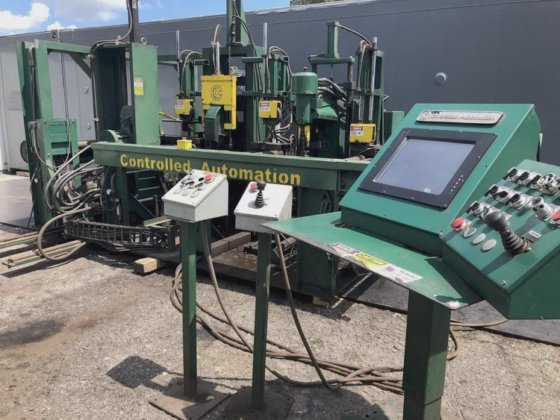

CONTROLLED AUTOMATION BFC-530 HYDRAULIC BEAM PUNCH LINE 5 PUNCH X 36" in Savage, MN, USA

CONTROLLED AUTOMATION BFC-530 HYDRAULIC BEAM PUNCH LINE 5 PUNCH X 36" CONTROLLED AUTOMATION BFC-530 HYDRAULIC BEAM PUNCH LINE 5 PUNCH X 36" Click images to enlarge Description INV 5686 Model ................... BFC-530 Total Number Of Punches . 5 Web Punches ............. 1 Flange Punches .......... 4 (2 per side w/ top & bottom) Beam Width Capacity...... 4" to 36" Material Weight ......... 300 lbs/ft Max Flange Thickness ........ 1-1/4″ Max (For 1" Hole) Punch Capacity .......... 1-9/16″ Positioning Accuracy .... 1/32″ +/- Positioning Speed ....... 0 to 183 ft/in Flange Punches .......... 2 Hit For Top & Bottom Pinch/Feed Rolls ........ Powered, Horizontal & Vertical Operating System ........ Windows XP Easily Networked ........ Yes ** Material can Flow from Right to Left or Left to Right ** No Need To Flip Beam: Can Punch Both Top & Bottom Flange Fabricators realize that holes and slots being punched are up to 4 times faster than any drilled process as well as more economical.
