Disa Dust Collector in Garrison, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2002
- Stock number
- Yd-1000
- Category
- Dust Collectors in USA
- Subcategory
- Dust collection
- Listing ID
- 92290609
Description

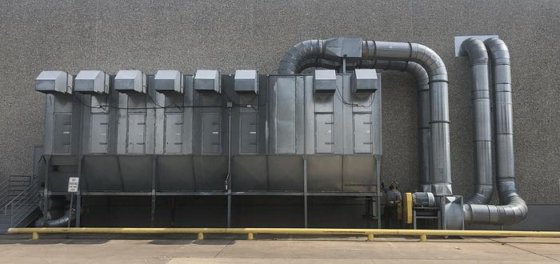

DISA 8+1 HJLR Description
- System Expandable to 100,000 CFM
- 30,000 CFM @ 4.69:1 Air-To-Cloth Ratio 6,400 Sq. Ft.
- Cloth area from (400) XT-3 Polyester Patented Superbags
- (8) Modules + 1 inlet configuration
- (8) Explosion/Access doors
- Two Zones at 15,000 CFM Each
- (2) 75 HP Backward inclined Material Handling Fans with independent starters, capable of 15,000 CFM each
- Rotary Air-lock discharge to transfer fan to closed loop transfer system
- Low Profile Steel Support Structure
- Flamex Spark Detection System Installed New in 2002.
- System does need some refurbish, mainly replacing approximately ½ of the trough panels. The rest of the collector is is operational state, and system was running when removed. Buying as is, no warranty
Does not include:
- Transfer, in house, or fan to filter ducting
- CARZ Valves
- Abort Gates
- Catwalk structure for access to filters
$150,000
$85,000 USD
