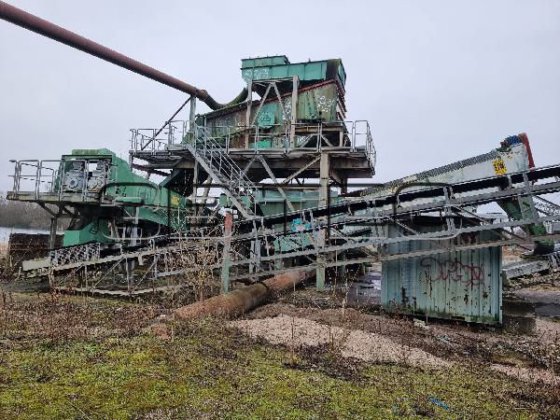

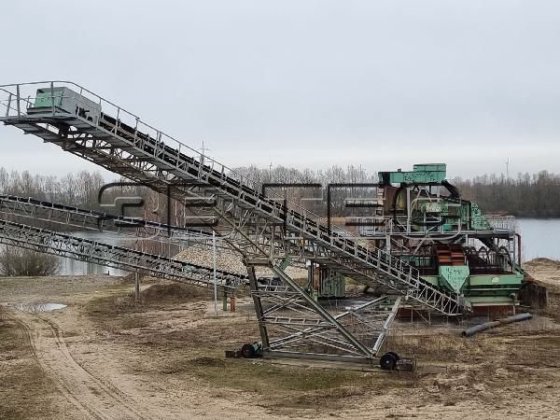

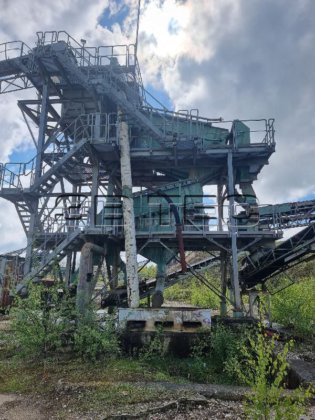

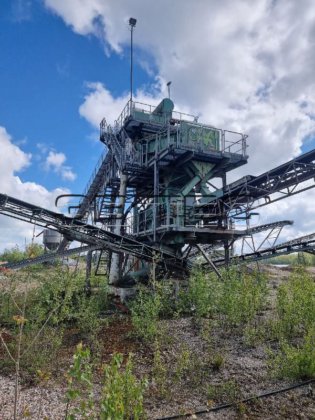

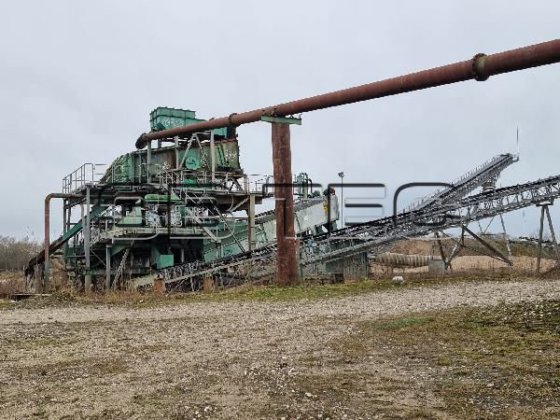

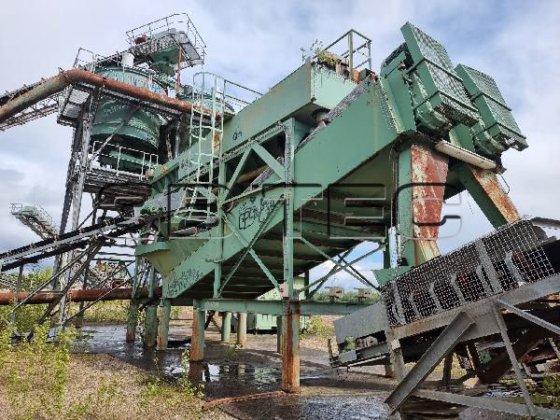

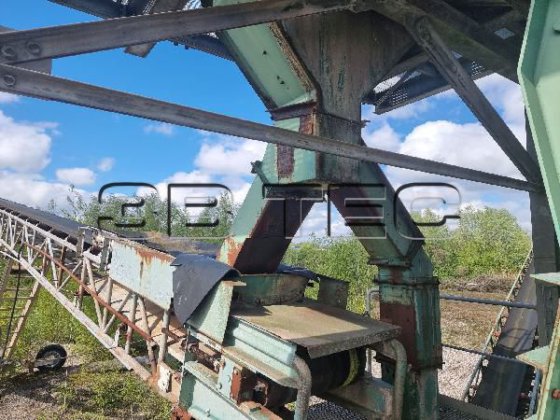

BRÄUER screening tower wet screening plant in Ludwigsfelde, Brandenburg, Germany

consisting of

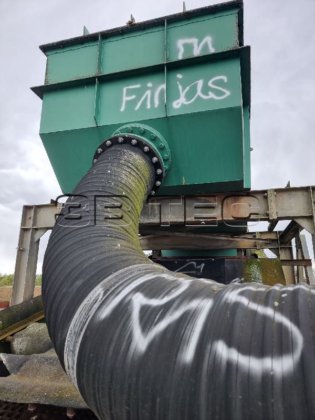

DN 300 pressure pipeline on screening tower,

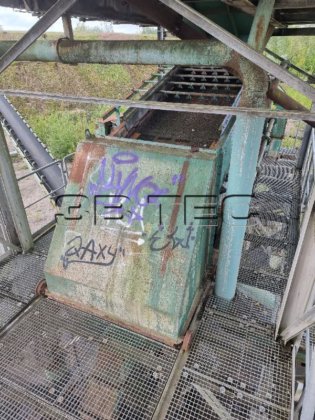

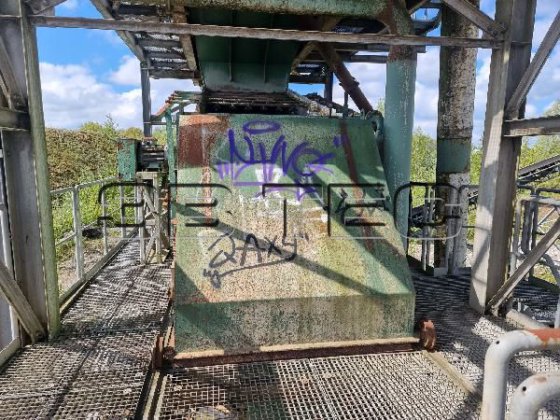

impact box,

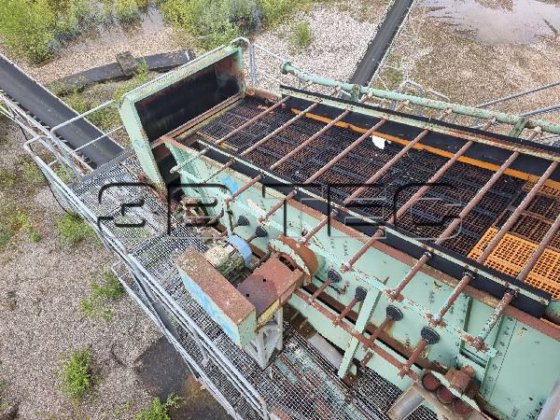

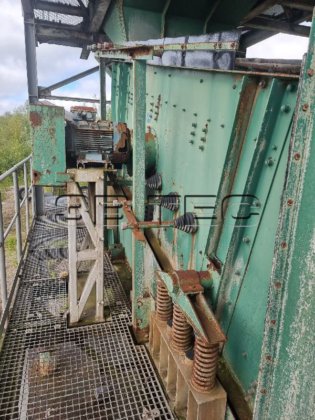

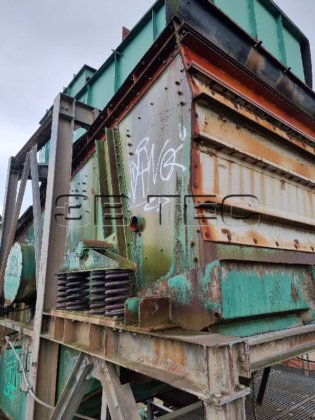

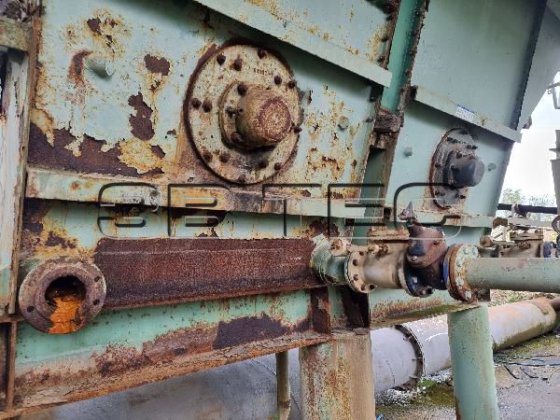

Bräuer DD screen 6000x2000,
sprinkler system,
overflow chute for 32/x,
Stichweh grit trap 0/2,
Eagle sand screw 2/4,
Eagle double shaft classifier 4/32

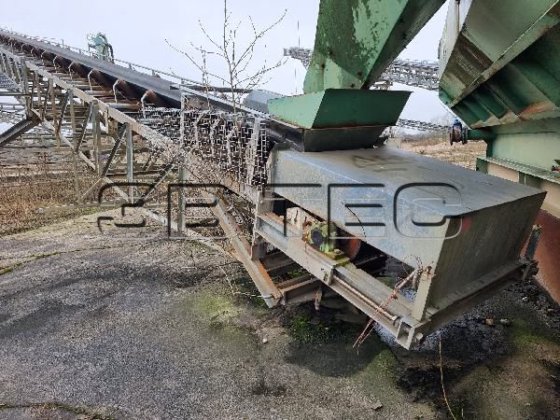

2x grit trap conveyor belts

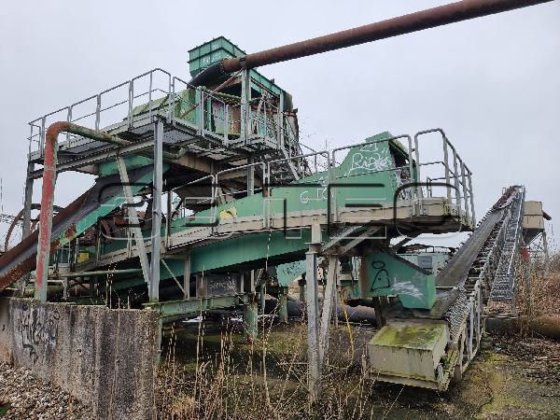

Pre-screening station

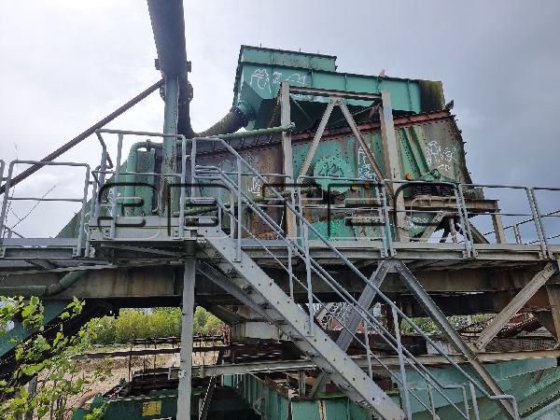

- Steel construction for screening machine 11,200 x 6000 x 5800 mm (LxWxH)
- Steel construction induction box to 2625 x 2400 x 4125 mm
of the platform for screening machine
- Wash-in box 4875 x 1500 x 900 mm
Flushing height in box 10,000 mm

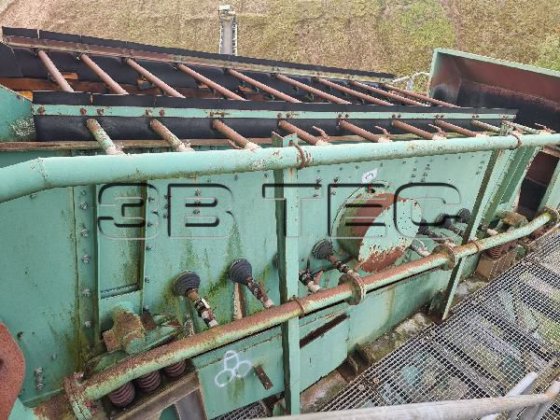

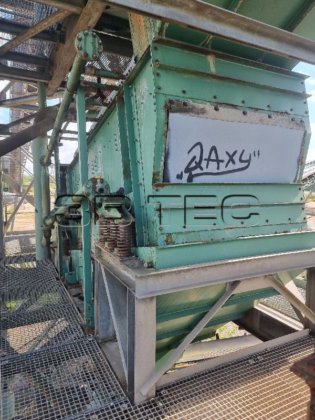

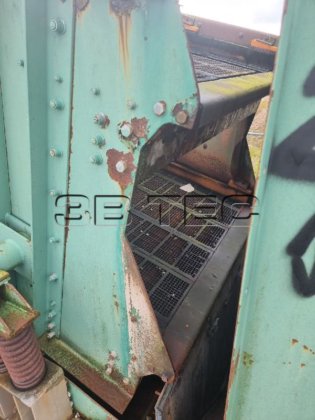

- Bräuer screening machine 2400 x 7000 x 2

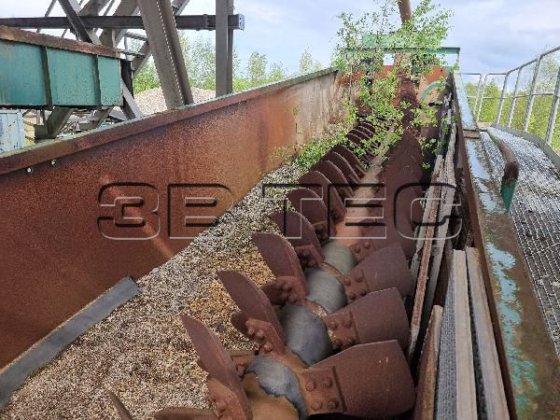

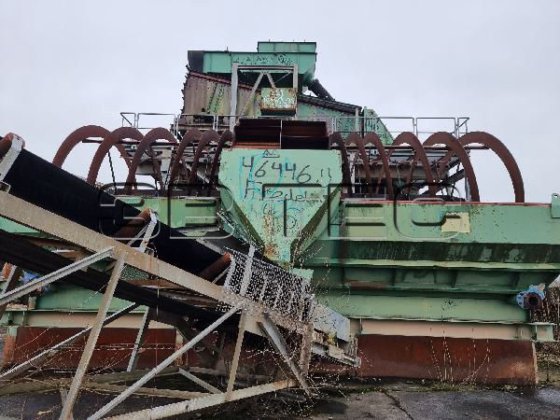

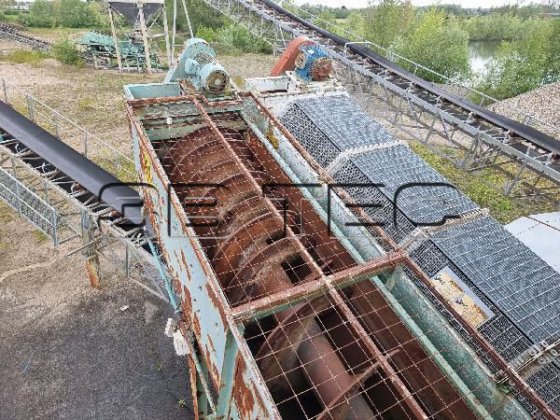

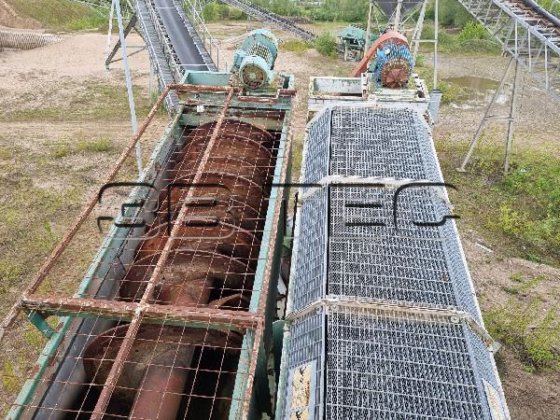

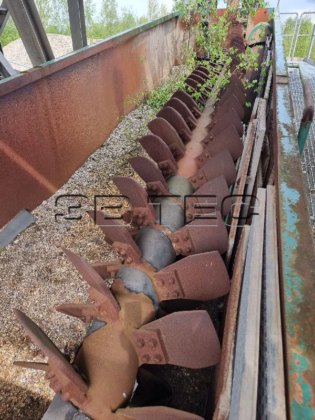

- Double shaft gravity washer 8000 x 2000 x 1200 mm
1 shaft missing

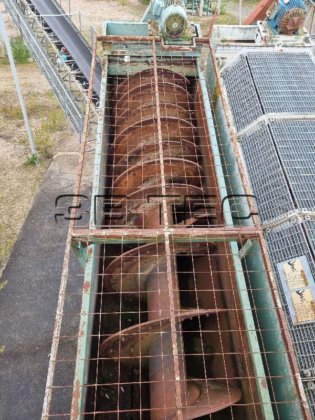

- 2 sand augers Eagle 54 "x34

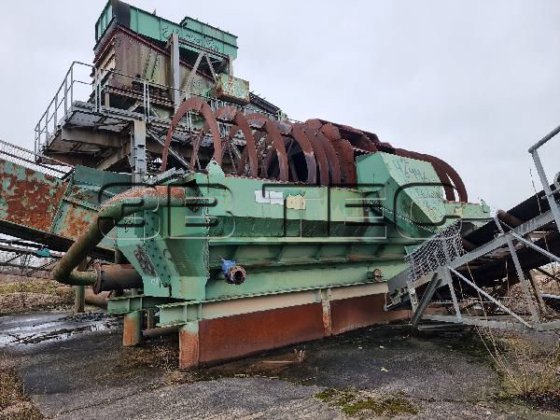

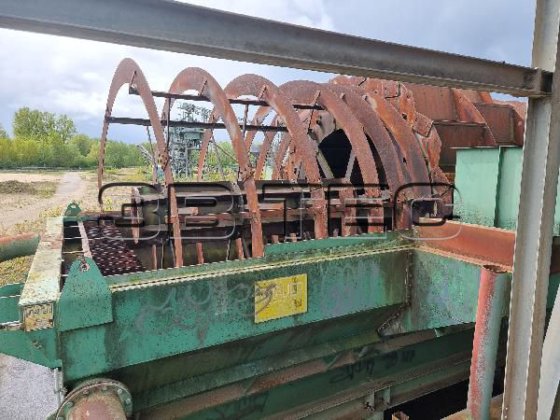

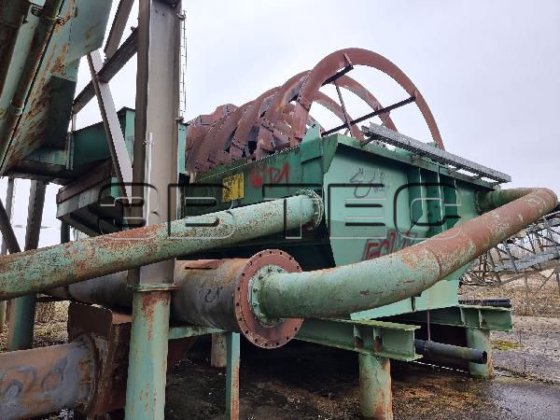

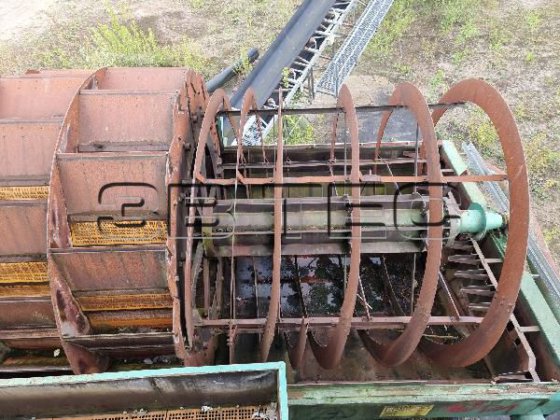

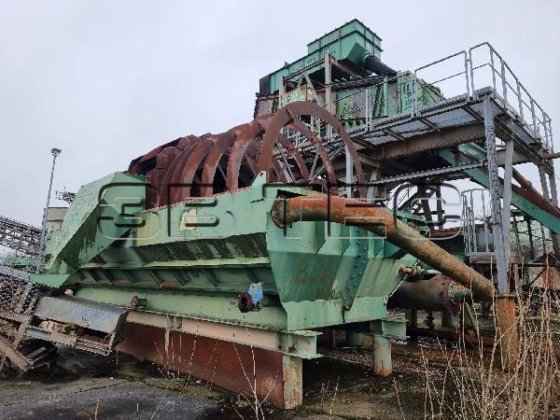

- 1 scoop wheel Bräuer FS40-18-95 W
Drive missing

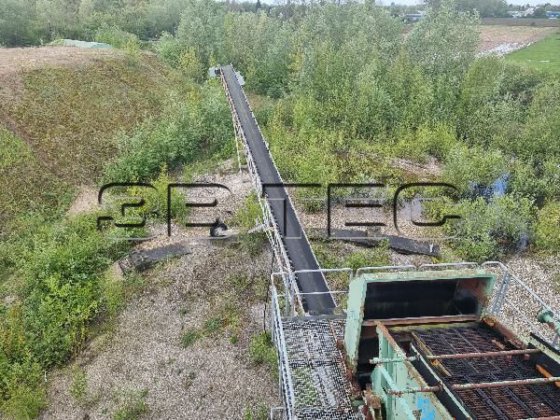

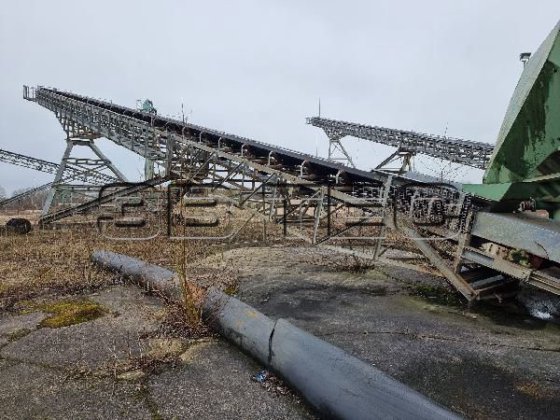

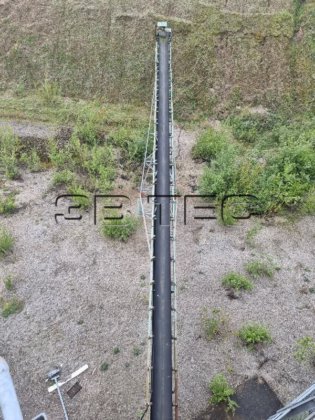

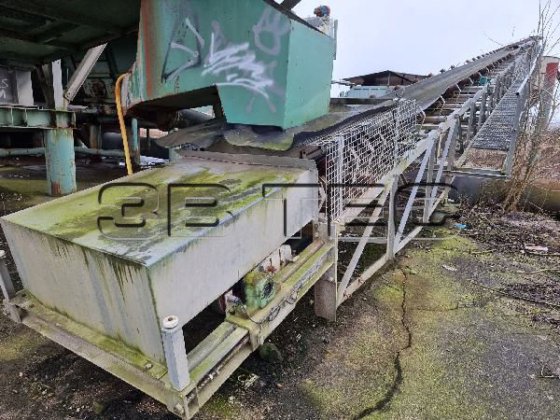

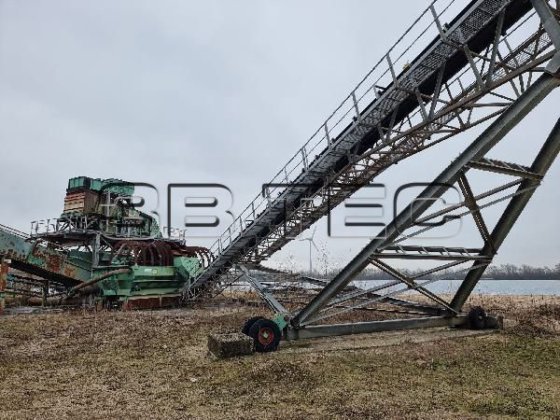

- Sand stockpile belt AA 41.750 mm/BB 1000 mm
Feeding by scoop wheel
Drive 30 kW
pivotable
galvanized
walkway on both sides
V-support
Discharge height 12,570 mm
Documents:
Drawing (PDF, 197,15 Kb)
Site plan (PDF, 529.76 Kb)
Prescreening station (PDF, 1,03 Mb)
