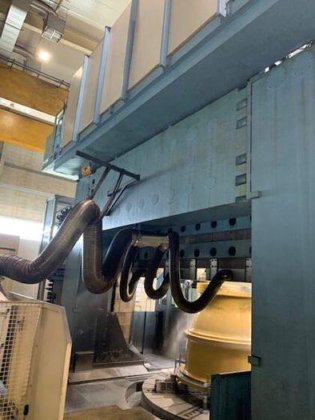

Schiess Vertimaster VMG 4 CNC Double Column Movable Columns Vertical Boring & Turning Machine in Marietta, GA, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2009
- Stock number
- 11019
- Table diameter
- 4,000 mm
- Swing
- 5,000 mm
- Turning height
- 3,000 mm
- Table capacity
- 50 Ton
- Table turn speed
- 120 rpm
- Gantry travel
- 5,000 mm
- Z axis travel
- 2,000 mm
- Ram size
- 420 x 340 mm
- Number of claw boxes
- 8 Piece
- Clamping force of each case
- 12000 N
- Table turn speed milling
- 0 - 6 rpm
- Max torque
- 100 KnM
- Main drive power
- AC 110 kW
- Max permissible cutting for turning
- 60 kN
- X,z axis rapid traverse
- 0 - 16,000 mm/min
- Feed speed of the gantry
- 0 - 16,000 mm/min
- Category
- Boring Mills in USA
- Subcategory
- With live spindle
- Subcategory 2
- Boring mills, vertical
- Subcategory 3
- With travelling gantry/column
- Listing ID
- 92699067
Description
Siemens 840D CNC Control System
Y-Axis Gantry Travel Movable Columns
Live Spindle
C-Axis
80 Position Automatic Tool Changer
(AAC) Automatic Attachment Changer for 6 Milling Heads
Boring And Milling Head (Master Head – Principle
Straight Drilling & Milling Head GB-1B
Renishaw RBP 60 Probing System
Hand Held Terminal
Teleservice
Internal & External Coolant
Operator Control Cabin
Chip Conveyor
Working Area Machining Diameter 5,000 mm
Workpiece Height-Table Spindle Nose of Head 3000mm
