23 Spindle Boring Machine in Toronto, Ontario, Canada
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Subcategory
- Boring machines
- Subcategory 2
- Woodworking machines
- Listing ID
- 92895375
Description
Maggi Boring machine give great advantage to cabinetry shops, learn more about one of the most use machine in the furniture industry.

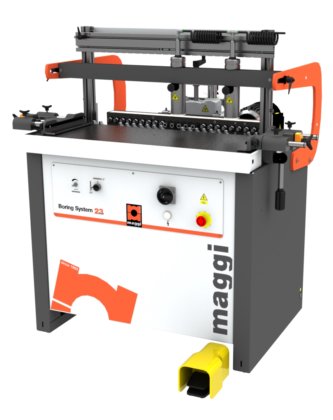

23 Spindle Boring Machine
Semi-automatic multiple drilling machine with alluminium fence 3000 mm. with Nr. 2 reference stops.
TECHNICAL DATA
Spindles:
23
Spindle Diameter:
32 mm (universal drilling solution)
Boring Capabilities:
Horizontal and Vertical
Boring Unit Tilt:
Pneumatic, locking points from 0 to 90 degrees
Drilling Depth Adjustment:
0 to 2.5 inches (patented spiral setting device)
Table:
Cast iron, 37″ x 13″
Side Fences:
Mechanical digital readout for quick and accurate setting
Line Boring Fence:
120″ with (4) stops
Clamping:
(2) patented quick release material clamps with auto-setting, Foot actuated pneumatic clamps
Motor:
2 HP
Dust Outlet:
3″
Voltage:
230V 3-Phase
Net Weight:
630 lbs.
Dimensions:
51.7″ x 37.8″ x 50″ Tall
Crated Dimensions:
44″ x 38″ x 42″ Tall
Crated Weight:
704 lbs.
Boring Bits:
