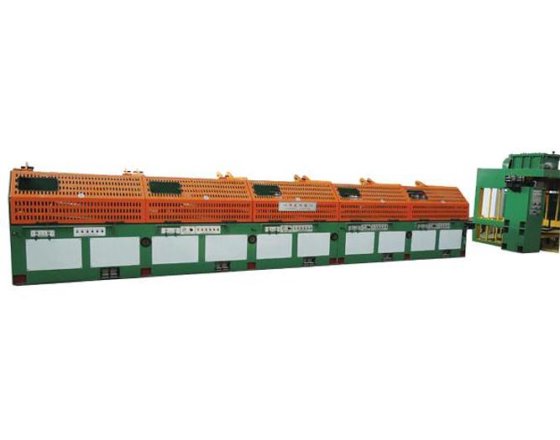

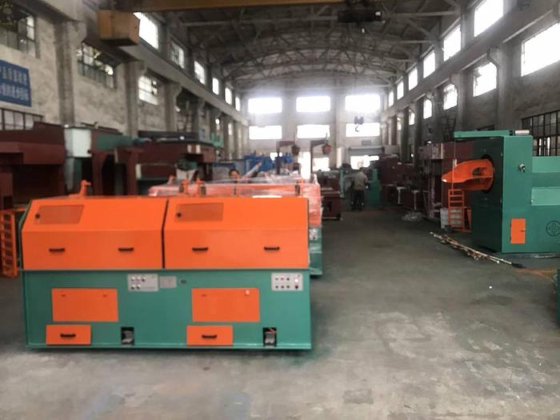

New type wire drawing machine in Harbin, Heilongjiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2024
- Serial number
- 003
- Stock number
- 1030
- Maximum diameter of inlet wire(mm)
- φ9-φ15
- Minmum diameter of oulet wire（mm）
- φ7.69-φ13.6
- Drawing line speed(m/min)
- 60
- Inlet tensile strength(mpa)
- ≤1300
- Total compression rate（%）
- 90.32
- Average compression rate（%）
- 20.83
- Motor power（kw）
- 55
- Dimension（mm）
- 8800*4000*2000
- Category
- Wire Machinery in China
- Subcategory
- Wire drawing machine
- Subcategory 2
- Wire drawing machine
- Subcategory 3
- Oto type wire drawing machine
- Subcategory 4
- Straight line wire drawing machine
- Subcategory 5
- Inverted vertical wire drawing machine
- Listing ID
- 93458761
Description
This equipment is designed for large diameter steel wire rod,extending drawing process,the max inlet diameter is 10mm.LZ2/800 straight line wire drawing machine use hardened gear reducer,the manufacture technology is the same as straight line wire drawing machine.LT8-13/650 Wet wire drawing machine use 10 modulus herringbone gear,the bevel gear of take-up box use 12 modulus,and speed ratio is 1:1.This equipment has the man-machine dialogue,motor over temperature protection,meter calculation,full meter alarm,fault display functions.The control type adopts the PLC control,is a kind of high efficiency,energy saving,convenient operation,high degree of automation,wide range of technology advanced drawing equipment,and with low investment cost,low maintenance cost,widely used for drawing big diameter wire rope and spring wire.
