Automatic planter for onions and garlic in Hilton Head Island, SC, USA

Row spacing adjustment up to 6 rows between tractor wheels.

Adjustment of the distance between plants from 5 cm.

Accuracy of landing , high productivity, compact and reliable construction, ease of operation and maintenance. Intended for planting bulb-shaped seeds: garlic, onion, small potato tubers, saffron, etc.

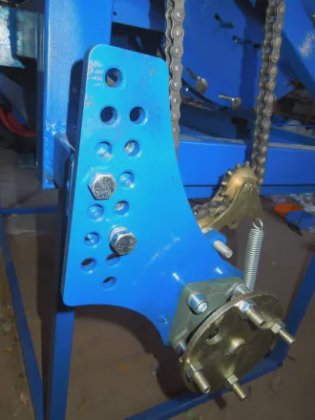

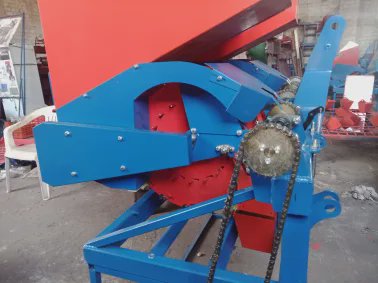

The sowing disc, passing through the hopper, grabs the planting material with a spoon. It moves in a circle and is thrown out at a certain moment, the material flies along the wide seed duct to the coulter, falls into the soil and is sprinkled with spring-loaded coils.

The sowing sections are arranged in a "checkerboard" order to eliminate the problem of "crushing the ground", which allows good planting results to be achieved even with small row spacing and poor soil preparation.

At the request of the customer, it can be equipped with an electronic unit that visualizes the quality of landing and the number of landing units in real time.

The enterprise can make a modified pond in terms of dimensions, spoons, etc. depending on the task.

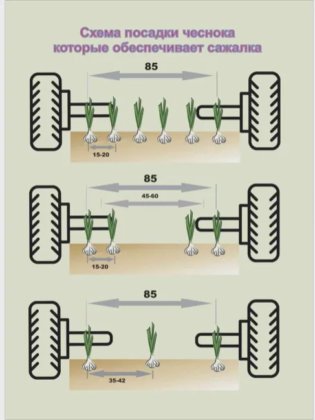

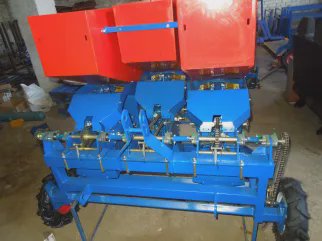

Each planting section has a separate seed box with a volume of 50 kg, which allows you to sow garlic of different caliber at the same time. The row spacing is adjustable from 16 to 85 centimeters .

The number of rows varies from 2 to 6

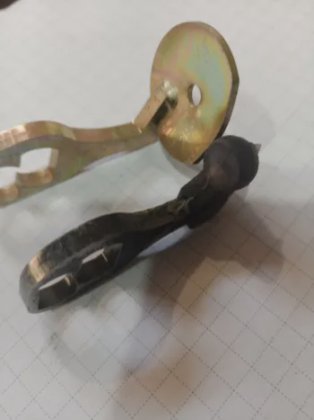

It is equipped with replaceable spoons, which allow you to plant as accurately as possible.

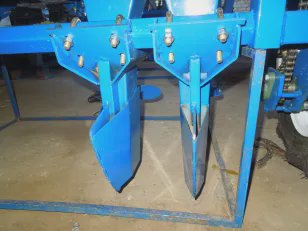

For sowing onions, the coulter can be equipped with rubberized spoons for a more gentle grip.

A mechanism of forced ejection of planting material, which has no analogues in Western manufacturers, has been implemented, preventing the passage of teeth that have not fallen out, which interfere with the normal operation of the device.

We recommend using a planter with a spring post-emergence harrow of our production. Thus, you will not use herbicides and manual labor AT ALL.

Thus, you will reduce the cost of production and increase your profit .

Up to 700 thousand plants per hectare

Productivity 1.5 Ha per shift.

Service 1 operator.

POSSIBLE RENT OF EQUIPMENT AND MECHANISMS.

FOR BUYERS OF LANDING MATERIAL, THERE IS PRIORITY IN THE TERMS OF RENTAL.

THERE ARE RECOMMENDATIONS FOR GROWING AND CARE OF GARLIC.
