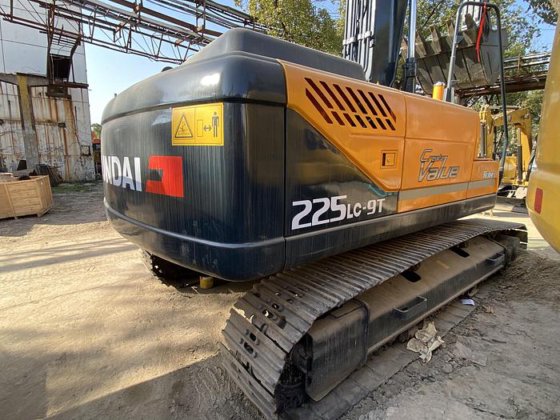

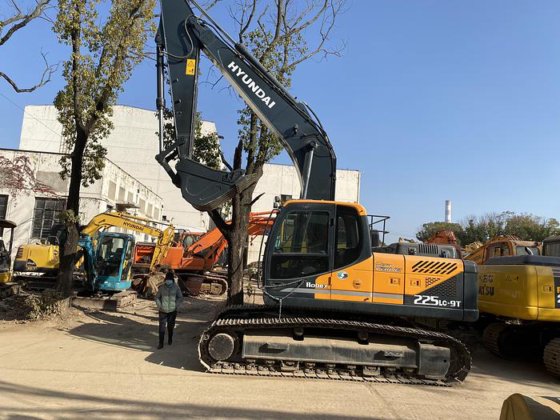

2020 Hyundai R225LC-9T in Shanghai, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2020
- Stock number
- 0451
- Machine working weight (kg)
- 22570
- Bucket capacity (m³)
- 1.05
- Boom length (mm)
- 5680
- Dipper length (mm)
- 2920
- Place of origin: jiangsu tonnage (tons)
- 22
- Bucket
- Backhoe
- Power
- traditional power
- Rotation speed (rpm)
- 12
- Travel speed (km/h)
- 5.3/3.4 (high/low)
- Gradeability(%)
- 35
- Ground pressure (kpa)
- 47.06
- Bucket digging force (kn)
- 151.6
- Digging force of stick (kn)
- 106.2
- Maximum traction force (kn)
- 191.1

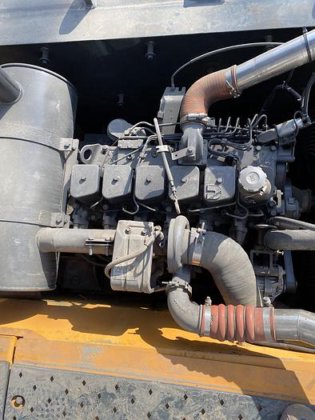

- Engine model
- Cummins B5.9-C
- Rated power(kw/rpm)
- 112/1950
- Maximum torque(n.m)
- 613.5
- Displacement(l)
- 5.9
- Number of cylinders (number)
- 6
- Cylinder diameter x stroke (mm)
- 107×124
- Cooling method
- Water Cooling
- Forms of work
- Six-cylinder four-stroke turbocharged direct injection engine

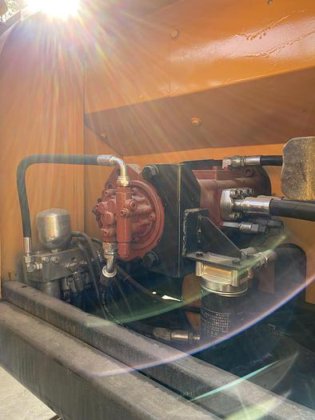

- Main pump type
- Variable displacement swash plate axial piston pump
- Maximum flow rate of main pump (l/min)
- 2×222
- Travel hydraulic motor type
- Variable displacement swash plate axial piston motor
- Rotary hydraulic motor type
- Fixed displacement swash plate axial piston motor
- Working hydraulic oil circuit (mpa)
- 35
- Travel hydraulic circuit (mpa)
- 35
- Rotary hydraulic circuit (mpa)
- 26.5
- Pilot oil circuit (mpa)
- 4
- Boom cylinder-number×cylinder diameter×stroke (mm)
- 120×85×1290
- Arm cylinder - number × cylinder diameter × stroke (mm)
- 140×100×1510
- Bucket cylinder - number × cylinder diameter × stroke (mm)
- 120×85×10553
- Fuel tank(l)
- 400
- Hydraulic oil tank(l)
- 160
- Hydraulic system(l)
- 275
- Engine oil change amount (l)
- 25
- Coolant(l )
- 35
- Total transportation length (mm)
- 9,550
- Total transportation width (mm)
- 2,990
- Total transportation height (mm)
- 3080
- Overall height of cab (mm)
- 2920
- Carriage width (mm)
- 2740
- Counterweight ground clearance (mm)
- 1060
- Track ground contact length (mm)
- 3650
- Total track length (mm)
- 4000
- Track shoe width (mm)
- 600
- Overall track width (mm)
- 2990
- Track gauge (mm)
- 2390
- Minimum ground clearance (mm)
- 480
- Minimum turning radius of front working device (mm)
- 3740
- Rear turning radius (mm)
- 2840
- Maximum digging radius (mm)
- 9980
- Maximum excavation radius of parking surface (mm)
- 9820
- Maximum digging depth (mm)
- 6,730
- Maximum digging height (mm)
- 9,600
- Maximum unloading height (mm)
- 6780
- Maximum vertical excavation depth (mm)
- 6280
- Maximum effective digging depth (mm)
- 6560
- Bulldozer blade width x height (mm)
- none
- Dozer blade lift or push depth (mm)
- no
- Category
- Compactors in China
- Subcategory
- Construction machinery
- Listing ID
- 94563264
Description
Our company specializes in exporting various second-hand construction machinery. It is one of the largest machinery trading platforms in the country. Such as Caterpillar, Komatsu, second-hand excavators, second-hand bulldozers, second-hand loaders, second-hand graders , second-hand cranes, and second-hand road rollers. If you find any machine that interests you, please let me know and we can provide you with more relevant photos and detailed specifications. You are also very welcome to visit our company!
(1)Service
Pick you up from the airport
Book a hotel for you
Take you to visit our factory
(2) Payment:
Location: Shanghai, China
Payment terms: T/T 40% deposit, 60% before loading
(3)Shipping
We have a variety of transportation methods that are safe and fast.
1. Container: cheapest
2. Bulk carriers: selection of large equipment
3. Frame box: large machine and does not require disassembly
4. Shipping: Good for every machine and faster.
You can choose a favorite one according to your needs.
Delivery: Within 5 working days after confirmation.
$26,604 USD
