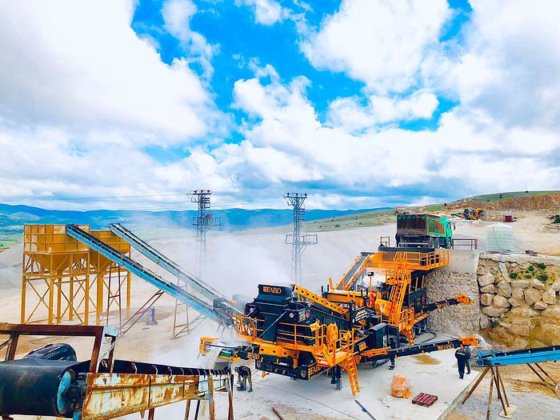

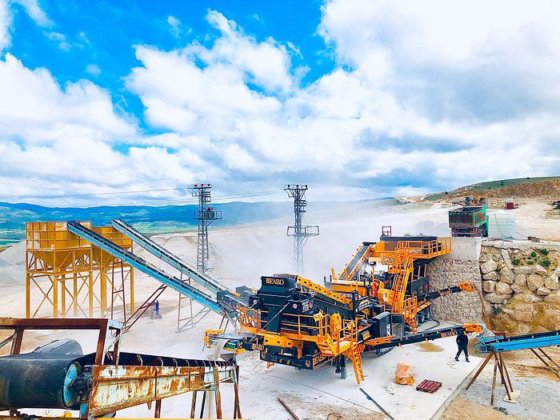

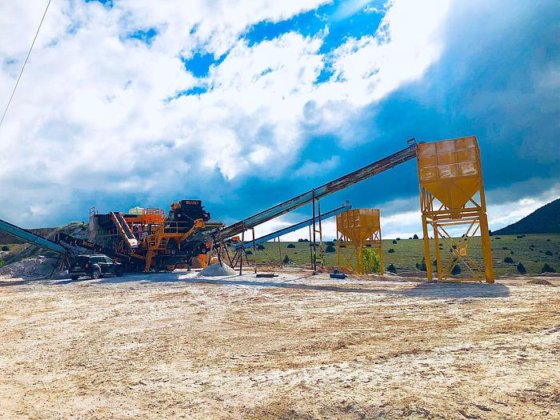

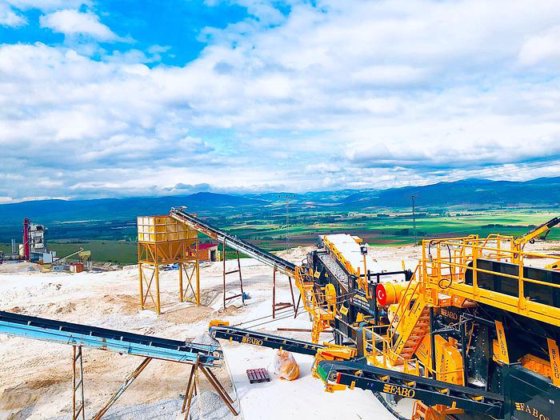

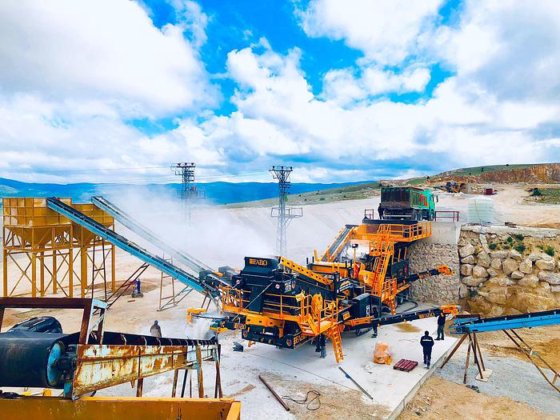

mobile crusher in İzmir, Turkey

MAIN FEATURES:

* Closed circuit crushing till to get desired size of product

* Capacity is variable according the material feed and final product dimensions to be crushed

* All equipments are assembled on single special heavy duty construction chassis, transportable by 1 truck

* Conveyors are foldable

* Up to 3 different sizes of aggregates

* Since the whole plant is built in one chassis, it has the advantage of the fastest production line

* PRO Serie mobile crusher plant can be used by single operator, feed can be done by truck, loader or excavator

* Plant can be installed in 2 days with its special heavy duty construction chassis

* With its multifunctional primary impact crusher, you can crush different product sizes with high capacity

* It is equipped with 3 axle, air-controlled brake system and signaling system.

* Hydraulic system is controlled by remote system

* All motors are under protection with metal sheet covers

* The dust suppression control system prevents dusting by conveying high pressure water.

* Mobile system has complete fully automation system. Also the plant can be controlled by using tablet with single staff.

TECHNICAL SPECIFICATIONS:

-Bunker: 40m3

-Plant Dimensions: 20000x4700x4700 mm

-Production Capacity: 250-350 Tons Per Hour

-Crusher Type & Rotor Size: Turbo Impact – 1200x1500mm

-Maximum Feeding Size: 800 mm

-Vibrating Screen Size and Deck: 2300x5500mm 3 decks

-Total Motor Power: 425 kW

-Generator (Optional): 900 kvA

PRO-150 is a combination of:

· Bunker(Hopper)

· Vibrating Grizzly Feeder (bypass)

· Turbo Impact Crusher

· High Stroke Type Vibrating Screen

· Folding type feeding, feedback, bypass and stock conveyor belts

· Hydraulic feet

· Mobile Chassis with axles and tires

· Fully Automation System

· Dust Suppression System

· Easy walking platforms for maintanance

· Diesel Generator (Optional)
