Crushers And Screening Plants in İzmir, Turkey

MAIN FEATURES:

* Closed circuit crushing till to get desired size of product

* Capacity is variable according the material feed and final product dimensions to be crushed.

* All equipments are assembled on single special heavy duty construction chassis, transportable by 1 truck.

* Conveyors are foldable

* Up to 3 different sizes of aggregates

* Since the whole plant is built in one chassis, it has the advantage of the fastest production line

* PRO Serie Mobile Crusher Plant can be used by single operator, feed can be done by truck, loader or excavator

* Plant can be installed in 2 days with its special heavy duty construction chassis

* With its multifunctional primary impact crusher, plant can crush different product sizes with high capacity

* It is equipped with 3 axle, air-controlled brake system and signaling system.

* Hydraulic system is controlled by remote system

* All motors are under protection with metal sheet covers

* The dust suppression control system prevents dusting by conveying high pressure water.

* Mobile system has complete fully automation system. Also the plant can be controlled by using tablet with single staff.

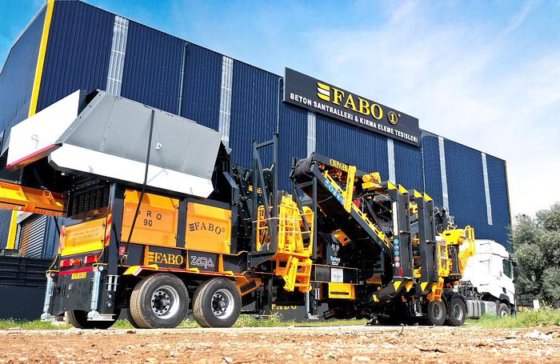

PRO 90 CRUSHING AND SCREENING PLANT

-Bunker: 20 m3

-Plant Dimensions: 16870x4552x4627 mm

-Production Capacity: 90-130 Tons Per Hour

-Crusher Type & Rotor Size: Turbo Impact – 1100x900 mm

-Maximum Feeding Size: 500 mm

-Vibrating Screen Size and Deck: 1400x4000 mm 3-4 decks

-Total Motor Power: 196 Kw

-Generator Capacity: 400 kvA

→ PRO 90 IS A COMBINATION OF :

· Bunker

· Vibrating Feeder

· Turbo Impact Crusher

· High Stroke Type Vibrating Screen

· Folding type feeding, feedback, bypass and stock conveyor belts

· Hydraulic feet

· Mobile Chassis with axles and tires

· Fully Automation System

· Dust Suppression System

· Easy walking platforms for maintenance

· Diesel Generator (Optional)
