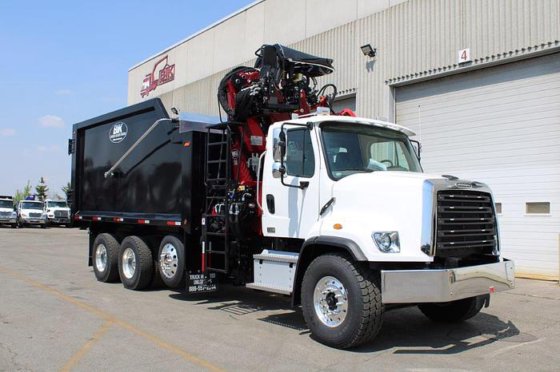

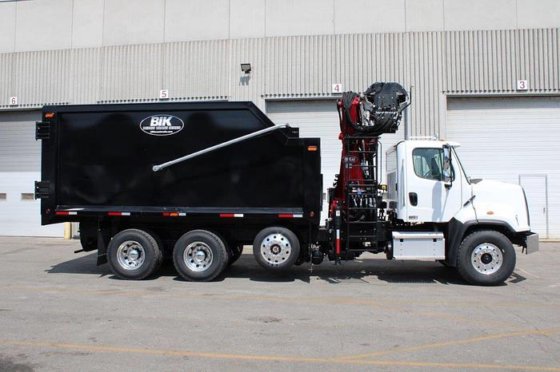

NEW BIK DEBRIS CRANE SERIES ZM-18F ON NEW FREIGHTLINER 108SD 4-AXLE in Toronto, Ontario, Canada

Horizontal Capacity

8,400 lbs @ 15′

6,250 lbs @ 19.5′

5,300 lbs @23′

4,100 lbs @ 29′

3,200 lbs @ 35′

Foldable Boom in “Z” type during transport with attachment connected – with standard Debris grapple

Telescopic Main Boom with Double Extension cylinder/chain system on the second boom, – Power Linkage system on Main Boom

Planetary Gear (Dual) Rotation Motors & Continuous Boom Rotation – for maximized slewing torque and reliability

High Controls from Top Seat with mechanical dual joystock and foot pedals for boom/grapple controls

Flip-Up style Hydraulic Out & Down Stabilizers – 16’ Xtra Wide Spread, Dual sided ground level controls

Control Panel at Top Seat to manage: Heated Seat, Truck Horn alert, Truck Engine on/off and High RPM control

Top Seat Cover foldable “hood” over seat to shield operator from rain during operation of boom

Carter Protection on first and second boom cylinders, Hydraulic Load Limiting Device, Boom is Factory painted Burgandy Colour

Tandem pump / Double Circuit system for optimum speed for simultaneous multi function use

Other Features Include: High Pressure Filters, Emergency Stop Botton, Manometer with “Traffic Light”, LED spot lights on secondary boom

Installed at Rear on sub base, all hydraulic & electrical connections with AW46 hyd oil, Engineer Stability load tested and certified

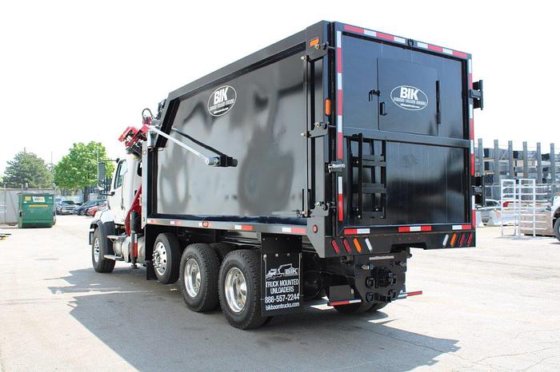

Deck Details

New – 18’ x 102” 70 Steel Dump Body:

Made with AR 450 Plate 1/4” Steel, 25’ Long x 102” Wide, 8’ High; Ground to Top of Sides

Single 3-stage telescopic dump cylinder, 3×4 x 3/8 Longsills

4” Heavy I–Beam Crossmembers, 2 x 4 x 1/4 Tubing Inside Body

45° Taper / 45° at front of Body for Loader to Swing Past, Air operated roll tarp system

Barn door opening at rear dump, top-rear dual sliding hatch door for chipping from rear

Penny Lights Down Sides; Six per Side, Five Total Midturn at Bottom

Strobes in Rear of Body, Mud Flap Brackets in Rear with Flaps, sandblasted/primed and painted gloss black

Truck Details

New – Freightliner 108SD 4- axle Diesel Truck –

67,000 lb GVWR

9L Cummins Diesel, 380 hp, Truck cab White

Allison RDS 3000 series Automatic Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims

13,000 lb self steer lift axle installed ahead of t/a with low profile 17” tires/alum rims

40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims, double frame chassis

Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc…

Also Included:

(1) – 36” Aluminum Storage Box Installed under deck

Options at Extra Cost:

Heavy duty pintle hook installed at rear

(1) Additional Aluminum storage box installed

Add (1) New Mecanil SG-280 Grapple Saw with custom quick disconnect lever portion

Mecanil SG-280 Grapple Saw (instead of the Heiden Trash grapple included above)
