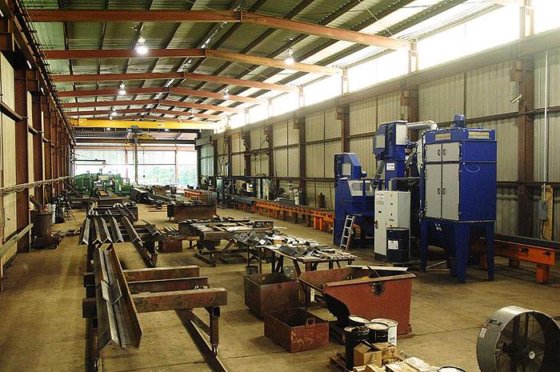

OCEAN BLASTER SHOT BLASTING SYSTEM in Powhatan, VA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Maximum profile height
- 40″ (1000mm)
- Maximum profile width
- 20″ (500mm)
- Minimum work piece height
- 0.5″ (10mm)
- Minimum work piece length
- 80″ (2000mm)
- Maximum weight of work piece
- 500 lbs/ft (750kg/m)
- Number of wheels
- 4
- Diameter
- 15″ (380mm) at 50Hz
- Number of blades
- 6
- Blade width
- 2.16″ (55mm)
- Turbine drive
- 10hp (7.5kW)
- Abrasive flow per turbine
- 300 lbs/min (135kg/min)
- Abrasive throwing speed
- approx. 290 ft/sec (88m/sec)
- Subcategory
- Structural shot blast
- Subcategory 2
- Structural steel processing
- Listing ID
- 97047639
Description

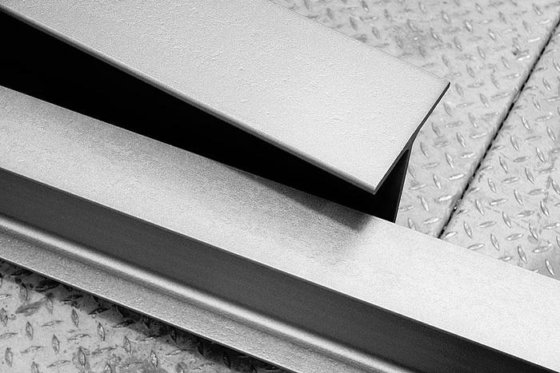

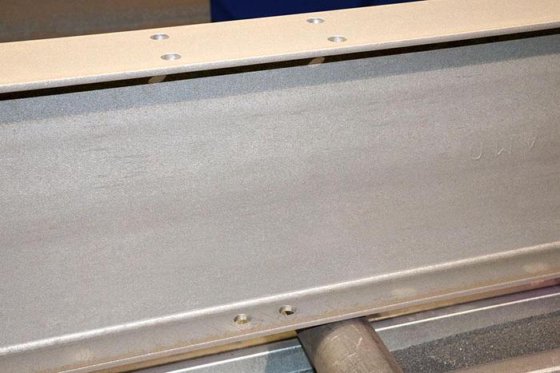

The Blaster shot blasting system will handle a wide variety of shapes and sizes up to 40 inches (1m), and can produce surface conditions up to White Metal Blasting SSPC SP5 (NACE 1) specification.
The machine is completely integrated and only requires infeed and outfeed conveyors.
Ocean includes full installation and training with the purchase.

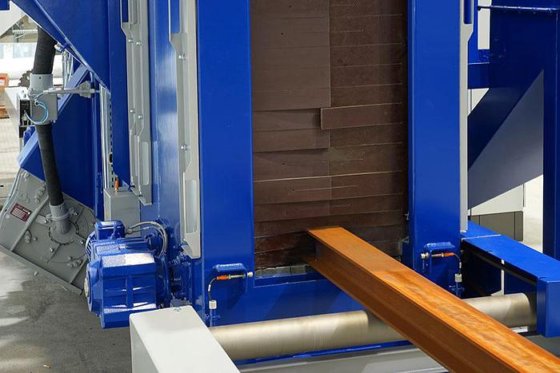

The blast cabinet is made of manganese steel for long life and is further reinforced with replaceable manganese liner plates. This well sealed chamber stops rust and dust particles from entering the shop.

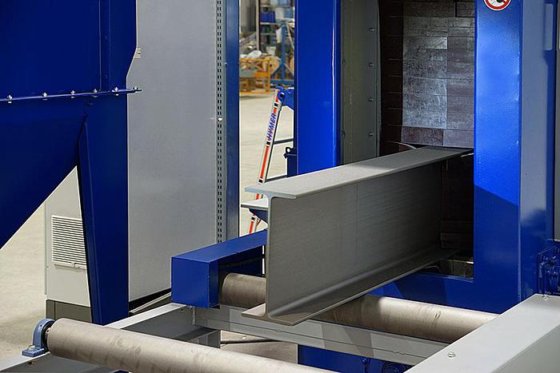

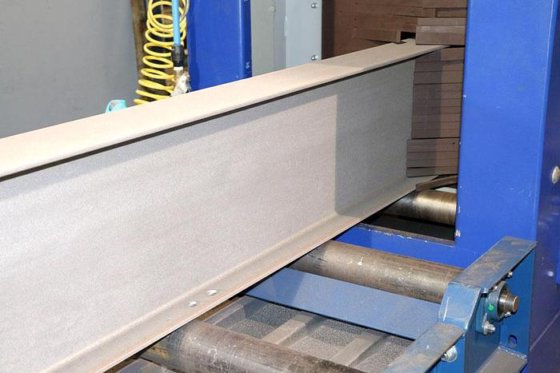

The heavy duty, variable speed chain driven internal roller conveyor is easily connected to extension input and output conveyors. Transfer speed is easily adjusted to achieve the desired surface finish.
The conveyor speed monitor automatically controls the starting and stopping of the shot blast action.
Four highly efficient direct drive Agtos High Performance Turbine blast wheels achieve the highest surface finish quality while requiring less power, further reducing cleaning costs.

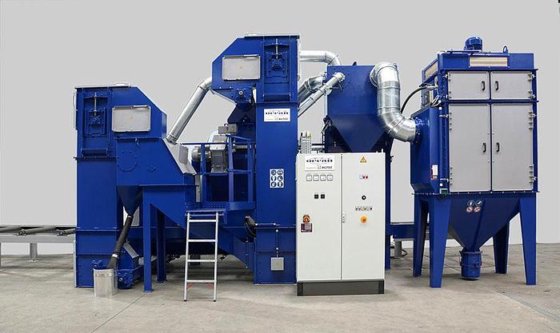

The complete abrasive recycling system comprises collection hopper, screw conveyors, two bucket elevators, air separator, drop-out box, maintenance platform and four high-performance turbines with abrasive flow-control units.
The high velocity abrasive blow-off unit at the cabinet exit keeps the shot in the system and out of your shop.
Within the abrasive recycling system, a large highly efficient air wash separator prolongs shot life and a drop-out box removes coarse particles to avoid destruction of filter elements.
All inspection ports are easy to access and a maintenance platform is standard.
The simple maintenance requirements, the reduced abrasive consumption and reduced energy consumption all add up to a significant reduction in operating costs.

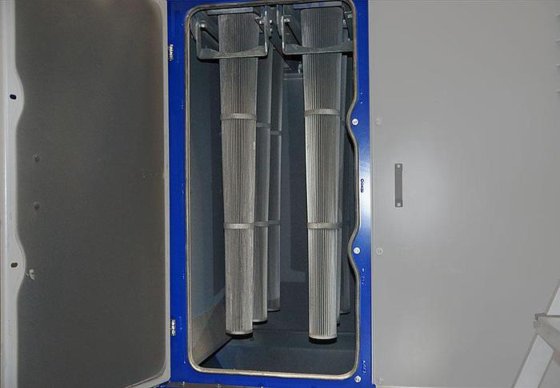

An integrated air filter unit with long-life conical elements effectively removes dust from the system, and returns clean air to the shop. This filter system is self-cleaning and the filter elements are easily replaced after many hours of use.

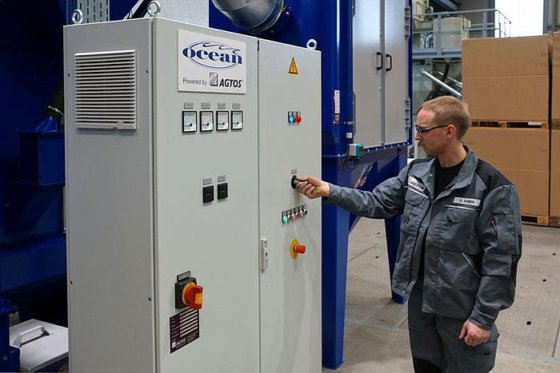

A central electrical cabinet provides complete control of the unit with ammeter display for control of turbines, working and blasting hour counters, lighted control switches, fault indicator lamps, speed controller, master switch and emergency stop switch.
13″ (330mm) at 60Hz
