OCEAN ELIMINATOR MODULAR MATERIAL HANDLING SYSTEM in Powhatan, VA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Roller spacing
- 18″ (457mm) on centers
- Roller diameter
- 3-1/2″ (89mm)
- Usable roller width
- 30″ (760mm) and 44″ (1120mm)

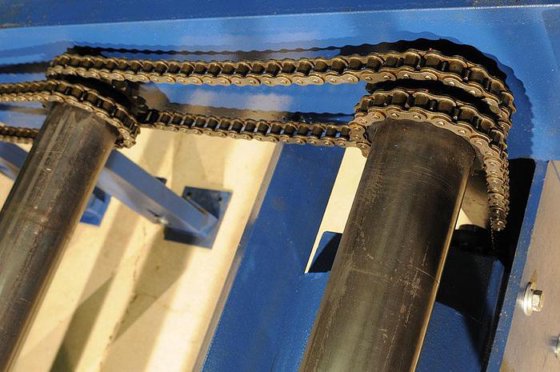

- Conveyor chain
- #60
- Capacity
- 700 pounds per foot (1000kg/m)

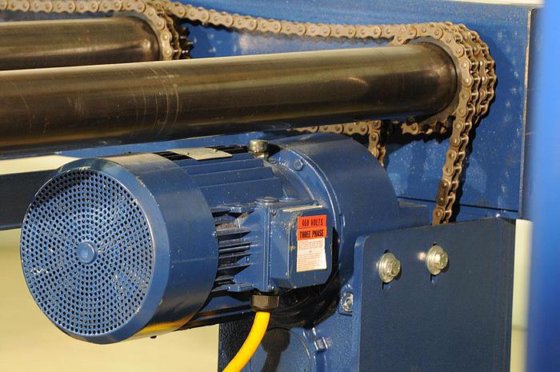

- Drives
- Electric Inverter Drive – variable speed control
- Transport speed
- 20 FPM (6m/min) forward and reverse

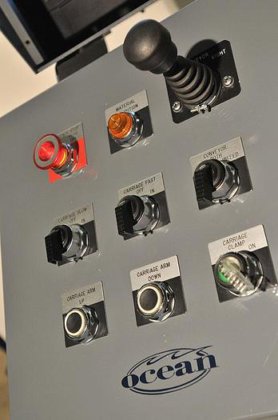

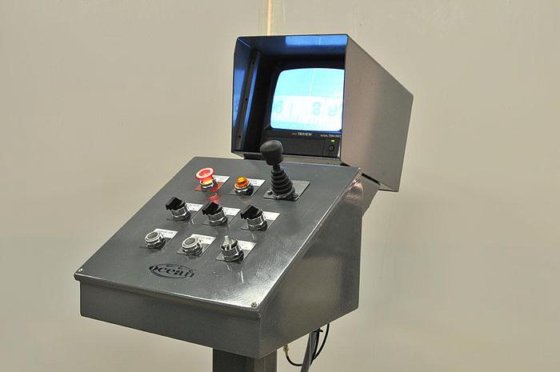

- Controls
- Fast, Slow, Forward, Reverse, Raise, Lower, Clamp, E-stop
- Measurement method
- Steel Tape with CCTV Display
- Contact arm lift
- Hydraulic
- Contact arm clamping
- Hydraulic
- Maximum measuring length
- 65′ (19.8m)
- Category
- Conveyors in USA
- Subcategory
- Structural steel processing
- Subcategory 2
- Material handling conveyor & transfers
- Listing ID
- 97047649
Description

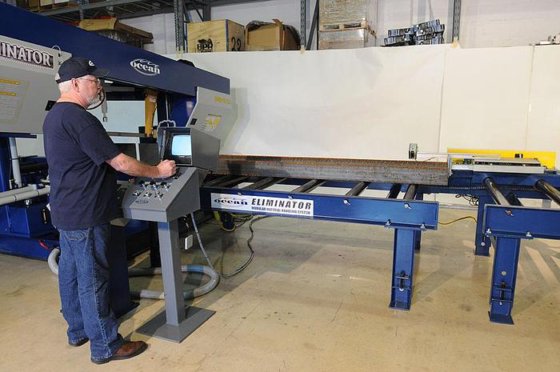

The Ocean Eliminator Modular Material Handling System is a totally modular system comprising 3 components that can be added to the system at any time without any modification. Unlike other competitive material handling systems, the entire Ocean Eliminator is supplied as a complete, easy-to-install system and includes the variable speed drives, operating control pedestal as well as all the hoses and fittings.
The Ocean Eliminator eliminates the unnecessary material handling in structural steel that is destroying productivity and profitability. On average fabricators handle each beam 17-20 times from the time the raw material arrives at his shop to the time it has it on the truck ready to be shipped to site.
Removing this non-value-added component from your fabrication process must be one of your highest priorities.
And to this end, Ocean Machinery designed a totally modular system that can be modified, extended or upgraded at any time, not locking in the customer to a system that gets outdated the minute it is installed.
The Ocean Eliminator Material Handling System is ideal for saws, beam drilling or punching lines, beam coping lines, shot blast machines, paint lines, etc, and will help you significantly reduce your labor and fabrication costs, as well as improve the safety of your workplace.
Positioning Accuracy : Initial +/- 1/8″; Repeatability : +/- 1/16″ (1.5mm)
