MTX Plus Flex 6 Hybrid 1250/30 in Powhatan, VA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 00032
- Max. punching force us ton (kn)
- 33 (300)
- Y-axis ” (mm)
- 50″ (1250)
- Y-axis motors
- 1
- X-axis ” (mm)
- 98″ (2500)

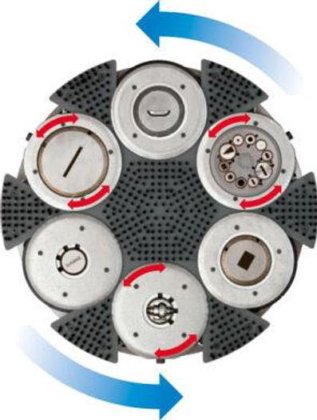

- Turret
- 6 Stations / 3 D Bi-directional Autoindex / 3 D Fixed
- Dimensions
- 16′ x 12′ (4850 x 3630 mm) / 18,750 lbs (8500 kg)
- Category
- Punch Machines in USA
- Subcategory
- Sheet metal punching cnc
- Listing ID
- 97047773
Description
The Euromac MTX Plus Flex 6 Hybrid 1250/30 is a robust sheet metal punching CNC machine, renowned for its precision and efficiency. It features a hybrid hydraulic system with a six-station turret, allowing for varied punching configurations. Capable of exerting 33 US tons of punching force, this machine ensures versatility and durability for demanding industrial tasks.
The machine offers an expansive working area of up to 8x4 feet (2500 x 1250 mm) without the need for repositioning, facilitating efficient processing of larger metal sheets. It boasts impressive punching speeds, reaching up to 1000 strokes per minute for nibbling with a 1 mm pitch, and accommodates up to 375 strokes per minute for punching with a 20 mm pitch.
Measuring 16 x 12 feet and weighing approximately 18,750 lbs, the Euromac MTX Plus Flex 6 Hybrid 1250/30 is designed for stability and precision. With a Y-axis span of 50 inches and an X-axis span of 98 inches, controlled via one motor, this machine is well-suited for high-volume production environments, ensuring high-quality results in metal fabrication projects.
