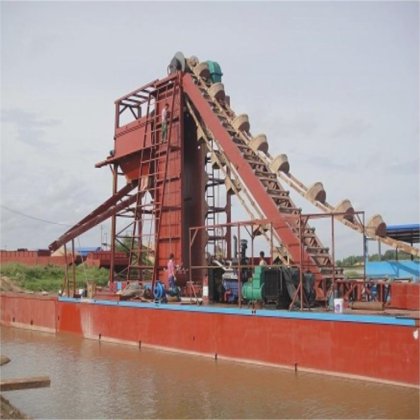

River Gold and Diamond Mining Dredger with Jigger Machinery in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Voltage
- 380V
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Weight
- >10T
- Material
- Marine Alloy Steel
- Material feature
- Corrossion Resistance
- Certification
- ISO9001:2008, ISO9001:2000, CE
- Energy saving
- Energy Saving
- Customized
- Customized
- After-sales service
- Lifelong Service
- Dredging depth
- 5-50m
- Capacity
- 50-500t
- Engine brand
- Cumins
- Generator sets
- Stanford
- Generator power
- 50-500kw
- Feeding way
- Excavator or Loader
- Classification system
- Drum Screen
- Water pump brand
- Rongcheng
- Gold machinery
- Agitation Chute with Fixed Carpet
- Diamond machinery
- Centrafuge Machinery
- Optional
- Jigger Machinery
- Product brand
- Hrxs
- Product name
- River Mining Dredger
- Orginal
- Qingzhou City Shandong Province
- Transport package
- in Bulk
- Specification
- Capacity 1 ton -500 ton
- Hs code
- 8905100000
- Production capacity
- 50000 Set /Year
- Category
- Mineral Processing in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mineral separator
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 97215220
Description
river gold and diamond mining dredger with jigger machinery
1. Description :
Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on .
The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .
Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed.
then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water
2. bucket chain mining dredger of application:
