Specifications
- Condition
- new
- Stock number
- 322
- Weight of the saw
- approx. 1.100 kg
- Cutting depth
- 80 mm
- Saw motor power
- 5.5 kW (7.5 HP)
- Saw blade diameter
- 300 mm
- Saw blade bore
- 30 mm *1
- Emission sound pressure level at the workplace lpa
- 79 dB *2
- Saw blade speed
- 4750 rpm
- 1 extraction connection
- ø 140 mm
- Compressed air connection
- 6-10 bar *3
- Wattage
- 7.3 kW
- Mains connection
- 3 x 400 V / 50 Hz
- Category
- Wood Saws
- Subcategory
- Saws
- Subcategory 2
- Vertical panel saws
- Listing ID
- 97892075
Description
The STRIEBIG STANDARD – the proven universal class.
Tried and tested over decades, it can almost be considered the Volkswagen Beetle of the vertical panel saw sector: This is the STRIEBIG STANDARD. For many years it has been setting the standard in the universal class for vertical sawing. Thanks to its
flexibility and its expandability, it is an ideal panel saw for companies of all sizes.

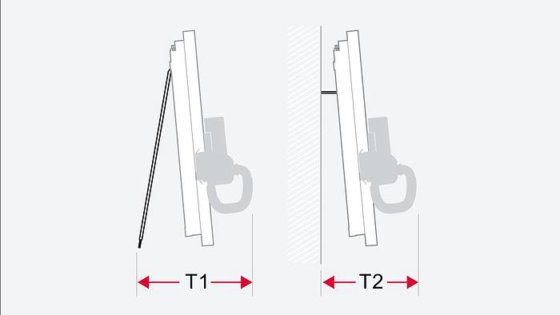

We offer the STANDARD in two versions
STANDARD TRK1
With automatically yielding wooden support wall.
STANDARD TRK2
With automatically yielding aluminium slatted frame.
Highlights of the STRIEBIG STANDARD
Experience, ability, precision
It keeps on going and going – in countless companies. Day after day, metre after metre, the STRIEBIG STANDARD saws a wide variety of panel materials. Utmost precision, accurate cuts with perfect edges every time.
Mustermix Material

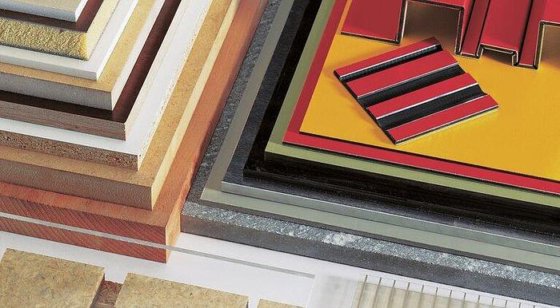

Universal class for all applications
Universally applicable for a wide range of panel materials: Whether chipboard, OSB, MDF, acrylic glass, composite or plastic panels, the STRANDARD can be used to precisely cut various materials.
Qualität
Durability and stability for decades of sizing cuts
Self-supporting, welded and equipped with hardened guides – these have always been the distinguishing features of the STANDARD's saw frame.
This frame, the heart of every STRIEBIG panel saw, has been continuously improved over the years.
The absolute parallelism between the upper guide rail and the centre and roller support ensures cutting precision for many years.

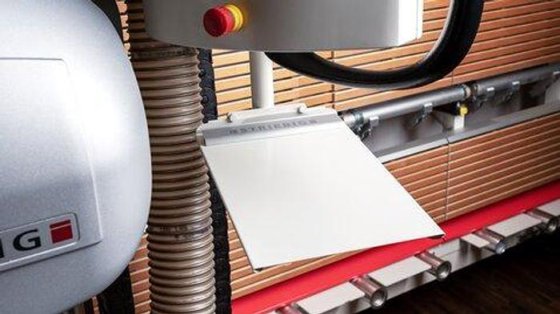

Absaugung
Clean air in abundance
We are aware of the high susceptibility to dust in many companies.
Therefore, the STANDARD is available in two different TRK versions. With the integrated TRK dust extraction system we achieve dust limits of well below 1 mg/m3 (TRK1). This means that we fall below the valid TRK guideline values by more than 50%.
