SAGA FIRST Hydraulic Lifting Platform Electric Scissor Lift table in Qingdao, Shandong, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Applicable industries
- Hotels Garment Shops Building Material Machinery Repair Manufacturing Plant Food & Beverage Factory Farms Restaurant Home Use Retail Shop Printing Construction works Energy Mining Advertising Company
- Place of origin
- Shandong China
- Lift mechanism
- Scissor Lift
- Lift drive / actuation
- Hydraulic
- Power
- 1.1KW
- Min. lifting height
- 205mm
- Table size
- 1600*1000mm
- Overall dimensions
- 1600*1000*205mm
- Weight
- 160 kg
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Warranty of core components
- 1 Year
- Core components
- Motor Pump
- Safety precaution 1
- Aluminum Safety Sensor
- Safety precaution 2
- Anti Explosion Valve
- Safety precaution 3
- Maintaince Strut
- Emergency decline valve
- Yes
- Operation mode
- Control Handle
- Surface treatment
- Plastic Spraying
- Input voltage
- 110V 220V 240V 380V 400V Customized
- Control voltage
- 24V
- Rated loading capacity
- 1 Ton / 2 ton / 4 TON / 1000KG
- Max. lifting height
- 1.5m / 1m / 2M / 1000mm
- Category
- Lift Tables in China
- Subcategory
- Material handling
- Subcategory 2
- Lifting, pulling & positioning
- Listing ID
- 98844577
Description
Lightweight Scissor Pallet Lift Table
Shuffleboard Table
- OEM & ODM Service -
SAGAFIRST Brand

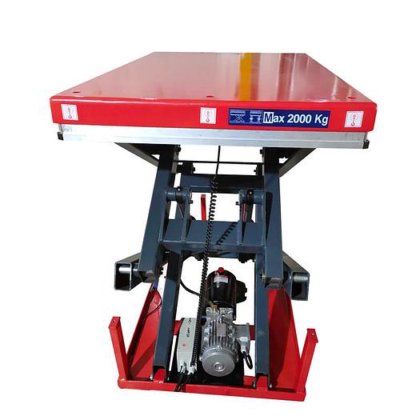

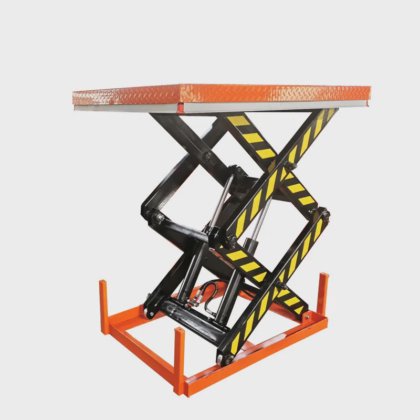

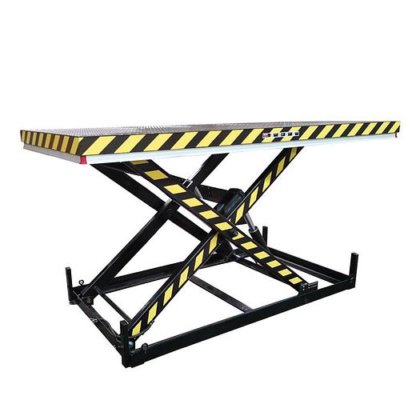

SS Series Scissor Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities from 1,000KG to 4,000KG, and lifting heights up to 4m. We also accept customized platform size and lifting height.
Hydraulic scissor lift
table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.
1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function.
2. High quality pump station make the scissor lift table lifts and falls very stably.
3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye can help to lift the table and install.
5.
