miUmac 2020 C0636B high quality bench lathe(TORNO) 360X1000MM manual turret lathe manual lathe machine in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2020
- Max. length of workpiece (mm)
- 1000 mm
- Range of spindle speed(r.p.m)
- 70 - 2000 r.p.m
- Machining capacity
- Light Duty
- Width of bed (mm)
- 186
- Spindle motor power(kw)
- 1.5
- Place of origin
- Zhejiang China
- Voltage
- 380v/220v/400v
- Dimension(l*w*h)
- 192x75x140cm
- Weight (kg)
- 510 KG
- Key selling points
- Easy to Operate
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Automatic grade
- Manual
- Swing over bed
- 330mm
- Spindle hole
- 38mm
- Spindle nose
- D4
- Spindle speed
- 70~2000rpm
- Motor power
- 1.5kw
- Width of bed
- 186mm
- Tool holder
- 16x16mm
- Weight
- 510KG
- Power(w)
- 1.5kw
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Food & Beverage Factory Home Use Retail Construction works
- Warranty of core components
- 1 Year
- Core components
- Bearing Gear
- Spindle bore(mm)
- 38 m'm
- Max. turned length (mm)
- 1000 mm
- Spindle bore
- 38mm
- Max. swing diameter (mm)
- 330mm
- Category
- Turret Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Manual lathe
- Subcategory 3
- Industrial machinery
- Subcategory 4
- Machine tool equipment
- Listing ID
- 101209953
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings,
3. Headstock gears are made of high quality 4. steel ground and hardened.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.

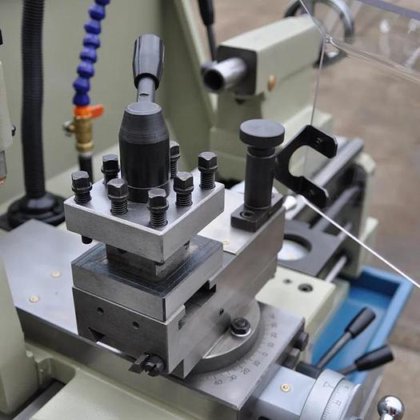

Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.
Manual tailstock
Tool box with accessoires.
