cnc turret lathe machine automatic cnc lathe machine dsp cnc controller for lathe machine in Xi'An, Shaanxi, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 3000 mm
- Range of spindle speed(r.p.m)
- 60 - 360 r.p.m
- Machining capacity
- Medium Duty
- Width of bed (mm)
- 750
- Spindle motor power(kw)
- 22
- Place of origin
- Shaanxi China
- Voltage
- Customer's Requirement
- Dimension(l*w*h)
- 4400x1600x1700mm
- Weight (kg)
- 11500 KG
- Key selling points
- Multifunctional
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Cnc or not
- Normal
- Automatic grade
- Manual
- Max. dia. swing over bed
- 1000mm
- Max. length of work piece
- 1500mm
- Max. dia. swing over croos slide
- 610mm
- Spindle bore
- 280mm
- Range of machining pipe thread
- 130-170mm
- Width of bed
- 750mm
- Max. swing diameter
- 1000mm
- Power(w)
- 22kw
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Retail Construction works Energy & Mining
- Warranty of core components
- 1 Year
- Core components
- Bearing Gear motor
- Spindle bore(mm)
- 280 m'm
- Max. turned length (mm)
- 2900 mm
- Max. swing diameter (mm)
- 1000
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Manual lathe
- Subcategory 3
- Industrial machinery
- Subcategory 4
- Machine tool equipment
- Listing ID
- 102059354
Description

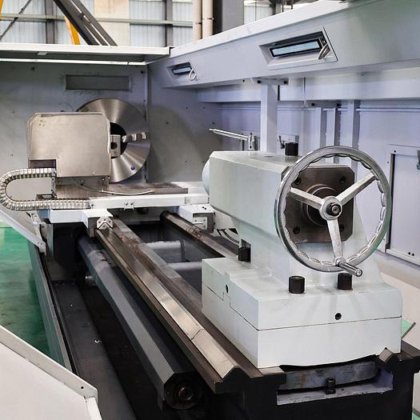

QK1327 CNC Pipe Threading Lathe
Main Functions:
HAVEN QK13 Series Pipe Thread Lathe is a kind of horizontal lathe designed for professional processing of thread works. It has all the functions of an ordinary lathe, and is also used for the processing of large-diameter pipe material. It is widely used in Machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries machining operations. The spindle box equipped with dual chucks, and lathe bed is with taper machining device that can process various internal and external diameter , Including metric, imperial, taper thread, etc. This lathe machine can also process shaft type part, disk parts and cylindrical parts. With help of appropriate tools and accessories, QK13 lathe machine can also process drilling, reaming, tapping and rolling and so on.
Main Machine:
Main specification:
Machine Details:
Machine in user's factory:
Delivery Machine:
$10,000 USD
