mini cnc lathe machine metal cnc lathe machine vertical lathe machine cnc conversion kit in Xi'An, Shaanxi, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 20000
- Range of spindle speed(r.p.m)
- 5 - 315 r.p.m
- Machining capacity
- Heavy Duty
- Width of bed (mm)
- 970
- Place of origin
- Shaanxi China
- Voltage
- 220v 380v 415v 575v
- Dimension(l*w*h)
- According to model number
- Weight (kg)
- 30000 KG
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Max. weight of workpiece(kg)
- 120000
- Spindle taper
- Other
- Cutting torque
- 6000 N.m
- Tool post stations
- 4
- Machine type
- Horizontal Normal Lathe
- Distance between centers
- 1000mm/1500mm/2000mm/3000mm
- Warranty of core components
- 1 Year
- Max. swing diameter (mm)
- 1120mm
- Spindle motor power(kw)
- 30kw
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Manual lathe
- Subcategory 3
- Industrial machinery
- Subcategory 4
- Machine tool equipment
- Listing ID
- 102059366
Description
CJK6646x4000 big spindle bore dia horizontal type oil country LATHE machine

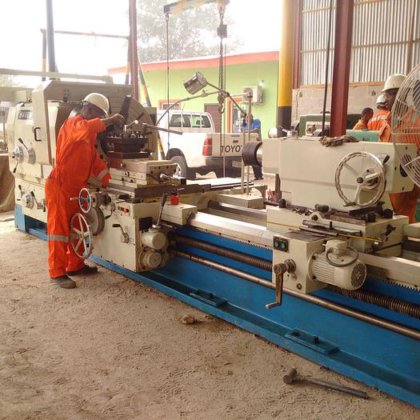

Machine Show
CJK6628/
3000
CNC OIL LATHE ( FANUC OI MATE)
Main specification
Max. Swing over bed: 1,000 mm
Max. Swing over carriage: 700 mm
Max. Length of work-piece: 3,000 mm
Max. Length to be turned: 2,800 mm
Max. Supporting weight between two centers: 4,000 Kg
Width of bed: 600 mm
Diameter of spindle inner hole: 280 mm
Range to turning diameter of pipe: 180 to 280 mm
Range of spindle speed: 2 steps; automatic infinitely variable 6.3 to 450 r.p.m
Diameter of chuck: 800 mm
Turret type: Vertical 4 positions made by China Yantai Machine Tool Accessories Corp.
Size of tool: 25×25 mm
Ball leadscrew: 50×5 for X-axis; 80×10 for Z-axis, imported
Travel of X-axis Z-axis: X: 420 mm; Z: 2700 mm
Rapid traverse of X & Z axis: X: 4000 mm / min; Z: 6000 mm / min
Feed range of X, Z-axis: 1 to 2000 mm/min
Threading range, 1 – 200 mm
Torque of X & Z-axis, servo motor: 27 Nm
Max. Movement of tailstock sleeve: 250 mm
$1,000 USD
